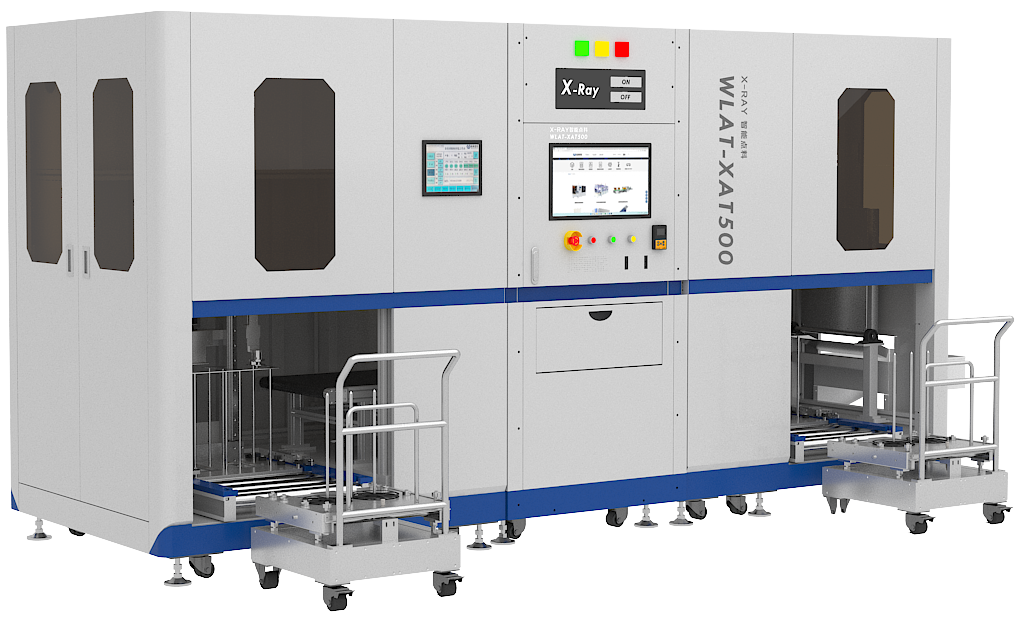

The X-ray Component Counter is a device that uses X-ray technology to quickly and accurately count electronic components. It is primarily used for component inventory management and feeding verification in SMT production lines.

Its integration with SMT production lines is as follows:

1. Component Inventory Management

• Function: Quickly and accurately counts the number of components on reels or tapes.

• Workflow:

  1. Place the component reel or tape into the X-ray Component Counter.

  2. The device scans using X-ray technology to identify and count the components.

  3. The counting results are synchronized with the inventory management system to update inventory data.

• Integration with Production Line: Ensures accurate inventory data, preventing production interruptions due to insufficient stock.

•

2. Component Verification Before Feeding

• Function: Verifies component quantities before feeding to ensure they match production requirements.

• Workflow:

  1. Before feeding, operators place the component reel into the X-ray Component Counter.

  2. The device quickly scans and displays the component count.

  3. If the quantity is insufficient or does not match requirements, the device issues a warning.

• Integration with Production Line: Reduces downtime caused by insufficient or incorrect component quantities.

•

3. Collaboration with Pick-and-Place Machines

• Function: Ensures accurate component quantities for feeding into pick-and-place machines.

• Workflow:

  1. Before feeding into the pick-and-place machine, the X-ray Component Counter counts the components on the reel.

  2. The counting results are compared with the feeding requirements of the pick-and-place machine.

  3. If the quantities match, the reel is fed into the machine; if not, the device issues an alert.

• Integration with Production Line: Improves feeding efficiency and reduces human errors.

•

4. Support for Smart Warehousing Systems

• Function: Integrates with smart warehousing systems (e.g., SMT Smart Reel Rack) for automated component management.

• Workflow:

  1. The smart warehousing system transports the component reel to the X-ray Component Counter.

  2. The device counts the components and feeds the data back to the warehousing system.

  3. The warehousing system optimizes component storage and scheduling based on the counting results.

• Integration with Production Line: Achieves automated and intelligent component management, enhancing production efficiency.

•

5. Data Recording and Traceability

• Function: Records component counting data to support quality traceability.

• Workflow:

  1. After each count, the device automatically records information such as component type, quantity, and time.

  2. The data is uploaded to the MES (Manufacturing Execution System) or ERP (Enterprise Resource Planning) system.

  3. In case of quality issues, the recorded data can quickly identify the source of the problem.

• Integration with Production Line: Enhances traceability and quality management in the production line.

•

6. Reduction of Manual Operations

• Function: Automates component counting, reducing human intervention.

• Workflow:

  1. Operators only need to place the component reel into the device, and the rest is handled automatically.

  2. The device supports batch processing, further improving efficiency.

• Integration with Production Line: Reduces labor costs and minimizes human errors.

•

7. Support for Multiple Component Types

• Function: Supports counting of various types and sizes of components.

• Workflow:

  1. The device automatically identifies the type and size of different components.

  2. Scanning parameters are adjusted based on component characteristics to ensure counting accuracy.

• Integration with Production Line: Adapts to diverse production needs, including small-batch, high-variety production.

•

Summary

The X-ray Component Counter closely integrates with SMT production lines through its automated, high-precision component counting capabilities. It ensures accurate inventory management, efficient feeding verification, and supports data traceability and smart warehousing system integration. Its use reduces manual operations, lowers error rates, and improves production efficiency, making it an indispensable device in SMT production lines.
