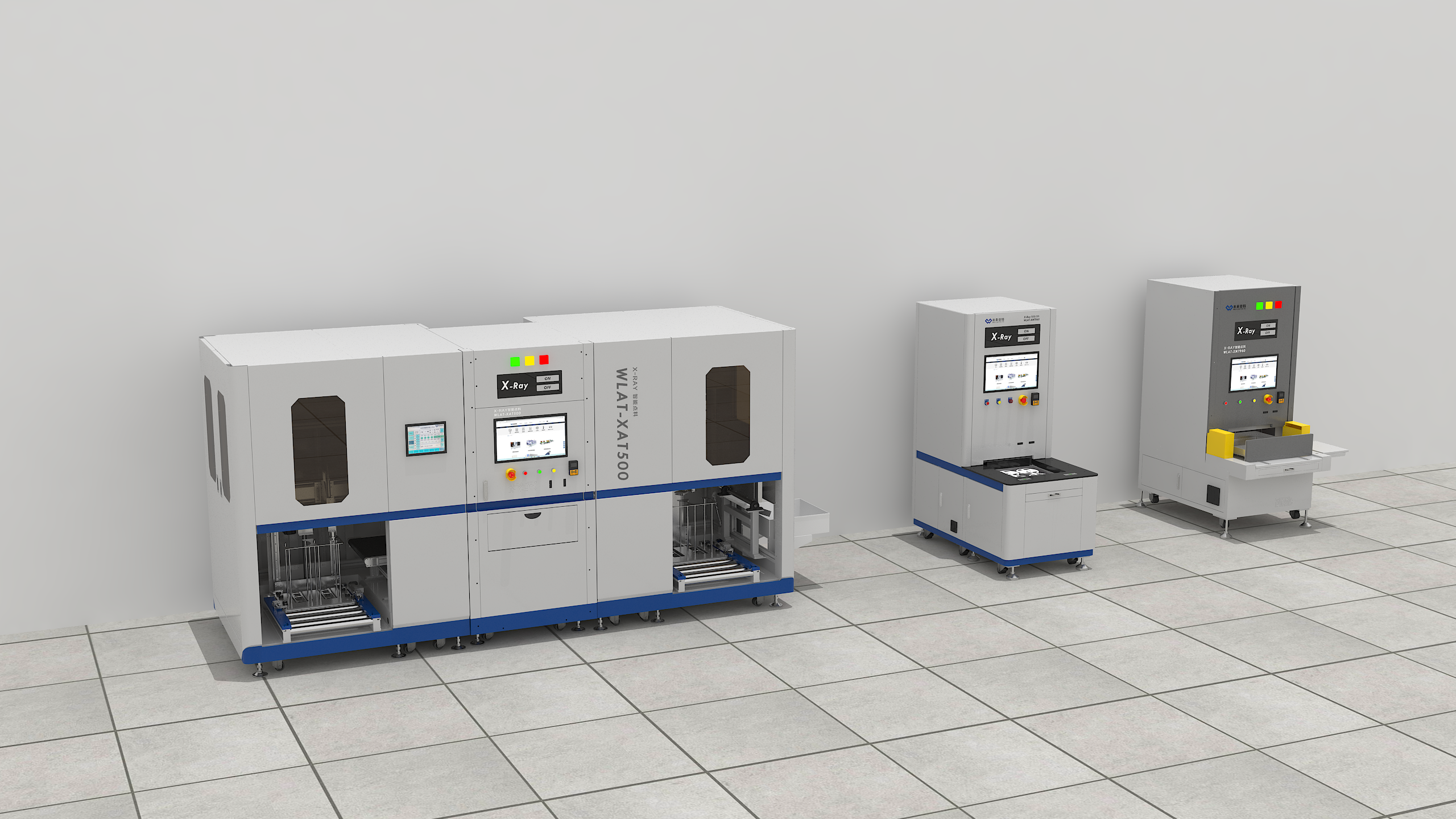

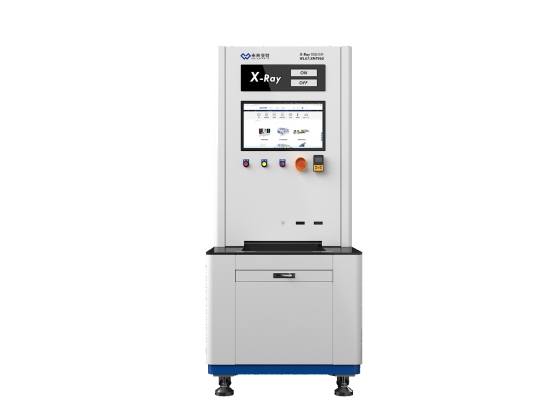

X-Ray Intelligent Counting Solutions
Accurate and efficient solution to the material "inventory" problem
-
The operator places the trays individually into the designated area for loading; -
2、 StartStart button, the material tray workpiece is After start-up, the trays are automatically fed into the material counting area; -
3、automatic feedingDouble stations take turns to point materials, automatically print labels, manual labeling, and thus cycle;
Functional features
l supports 7-15" material, height 8mm-70mm
l system can be interfaced with any WMS, ERP, MES, etc.
l is equipped with dual workstation tooling, waiting for interchangeable operations, 7" can place 4 trays, 13" can place 1 tray
l is fully compatible with online ordering and can be connected to a printer to support offline printing

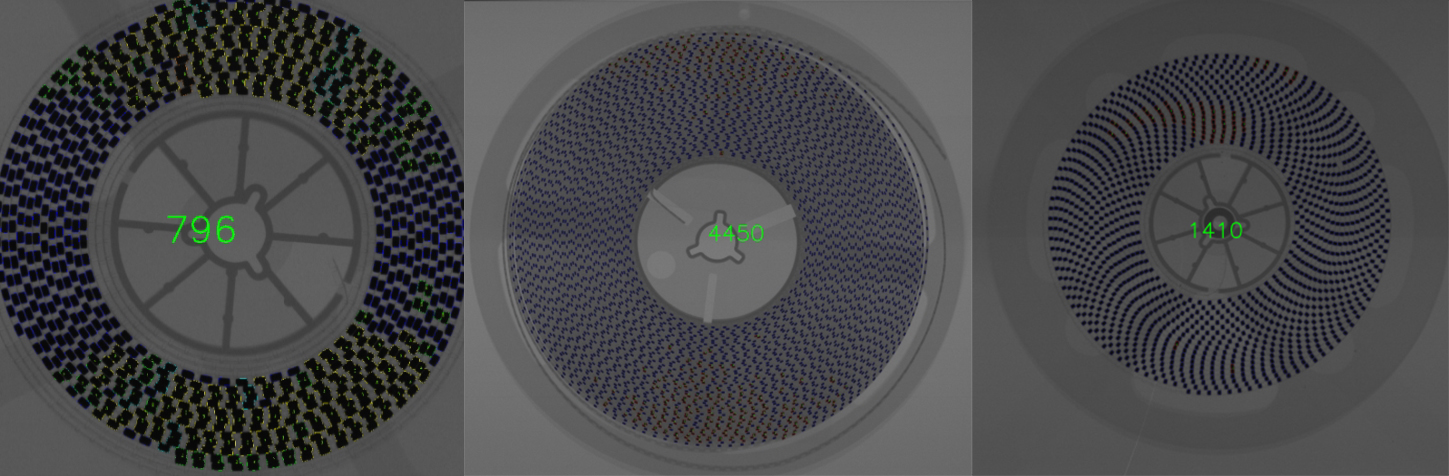

l can count materials with 99.99% accuracy to ensure the accuracy of the material back to the end of the warehouse, lean management of material use and loss.
l is easy to operate and can be operated by 1 person.
Scope of application
Used in the electronic components industry to count the end of SMD pallets with an average accuracy of 99.99% (accuracy varies for different material sizes)

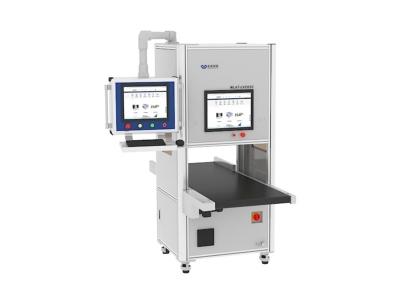

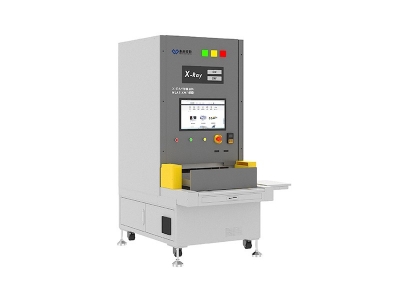

| Parameters | Double station SMT component counter (semi-automatic) |
|
Integration
System
|
system can be integrated with any WMS, ERP, MES, etc. |
|
Compatible
materials
|
Diameter:7-15or materials of the same size in a flat state; Height:5mm~70mm |
| Efficiency | 1200 reels/hour (7” SMD) |
| Accuracy | 99.99% (MIN detectable 01005) |
|
X-ray
configuration
|
17” flat panel detector with 139μm; VJ source 80KV/100W |
| Power Supply | AC220V(12A)(overseas customers can customize according to the actual local power supply voltage) |
| Air pressure | 0.5MPa clean compressed air |
|
Dimensions
(L*W*H mm)
|
1027*1586*2088 |
|
Loading and
Unloading
|
Manual loading and unloading: 4 reels/7” at a time, 1 reel/13” and above |
|
Series
Configurations
|
Automatic security access gate; Radiation dose: better than the national standard ≤1uSv/hr |
| Other | Compatible with online material point function, can also be connected to a printer, built-in 1000W industrial camera, offline labeling to prevent errors. |
