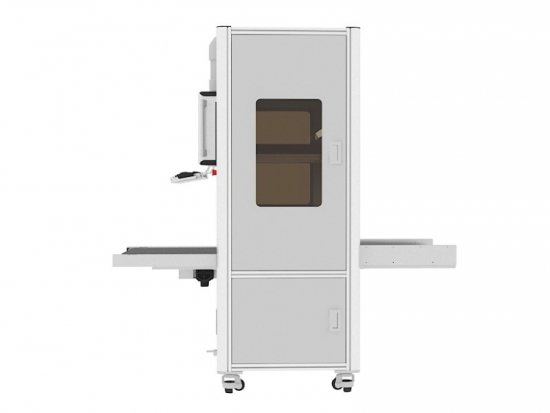

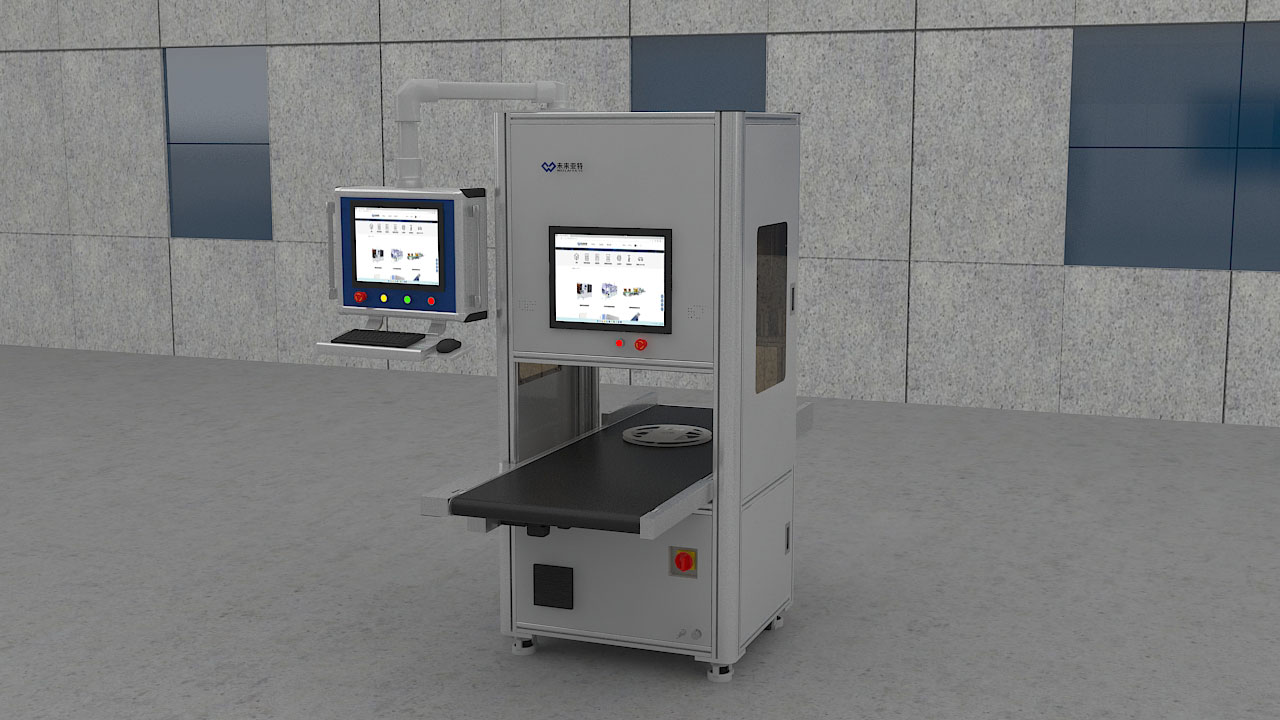

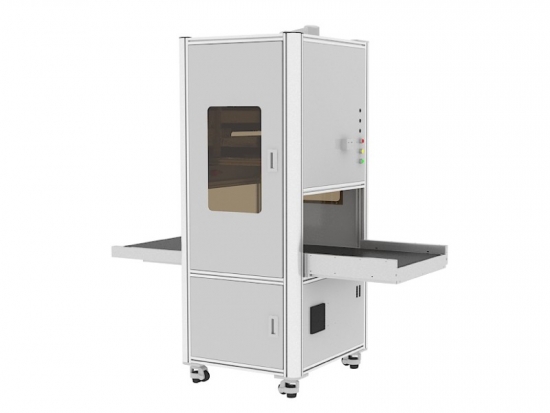

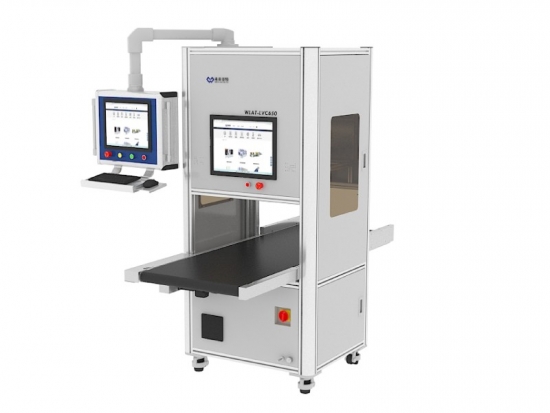

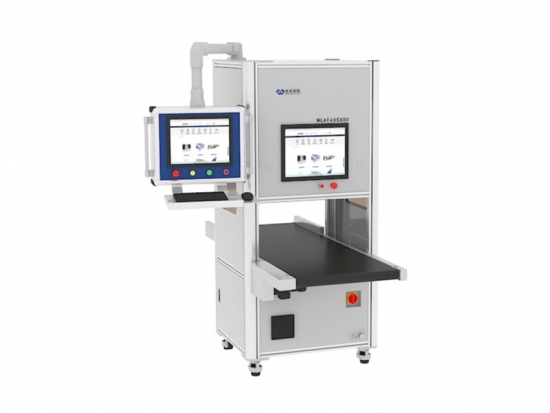

Semi-automatic labelling machine solutions
Automatic code reading, positioning and rechecking
-

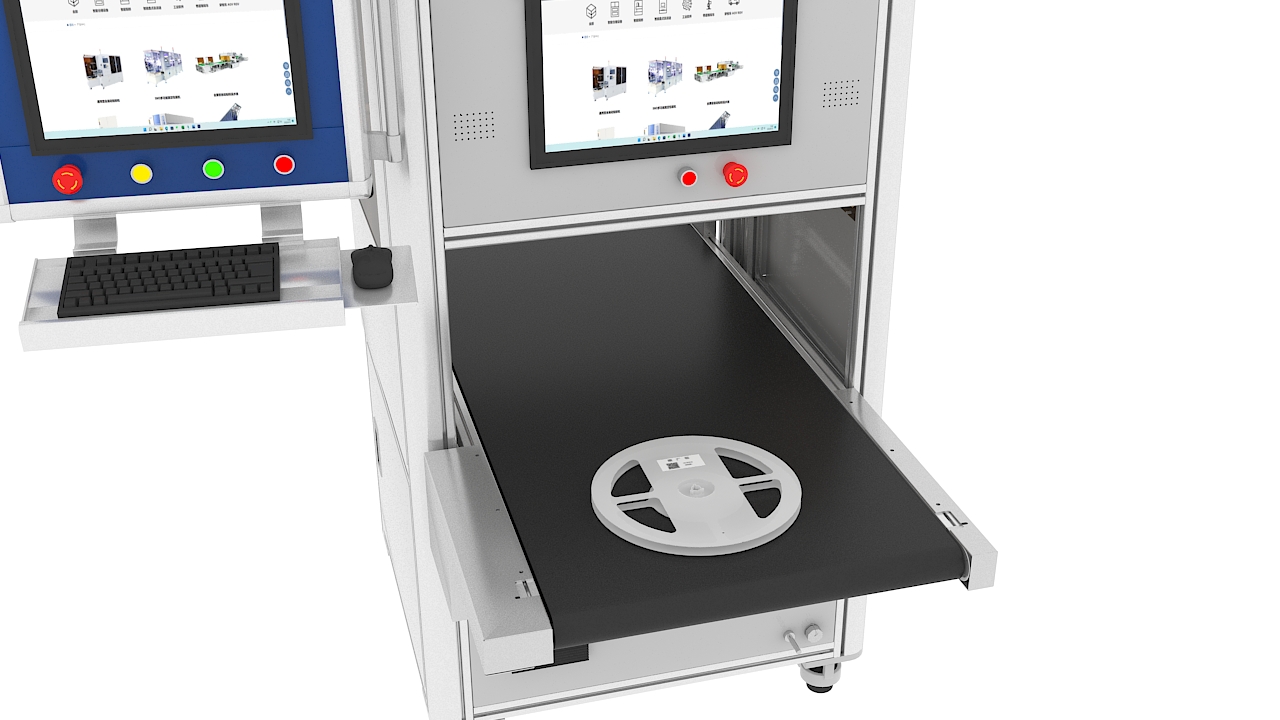

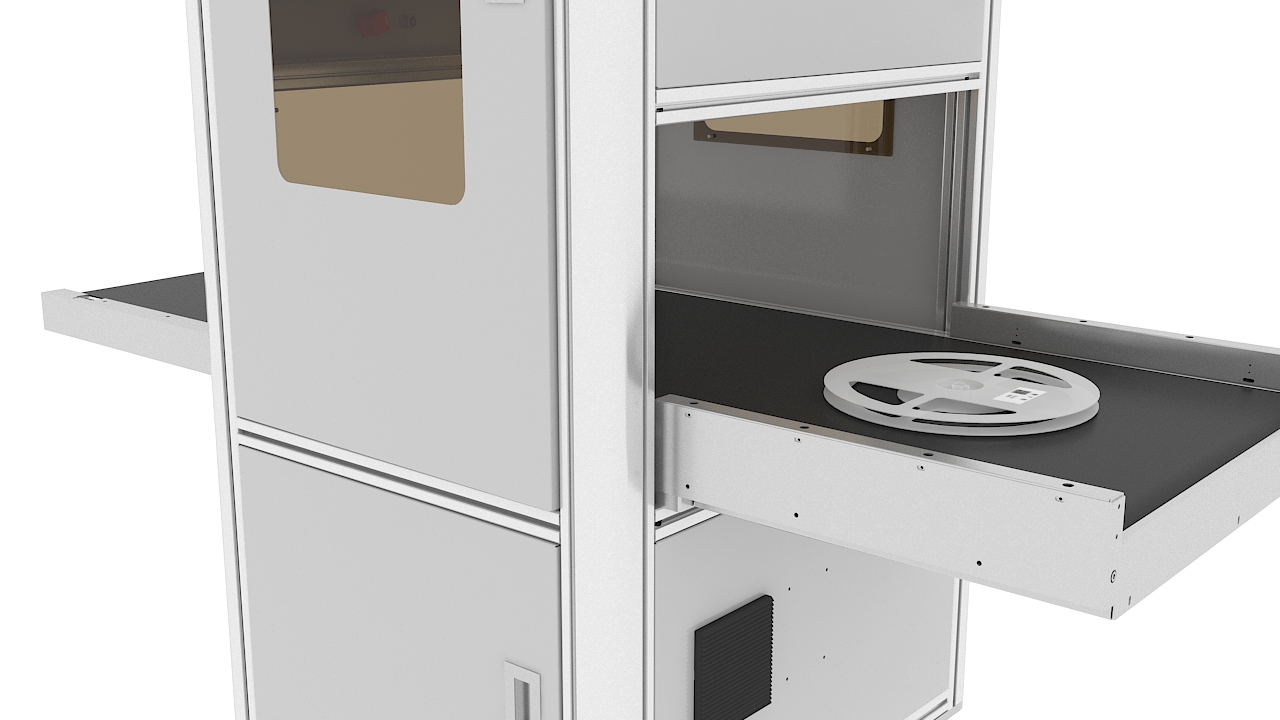

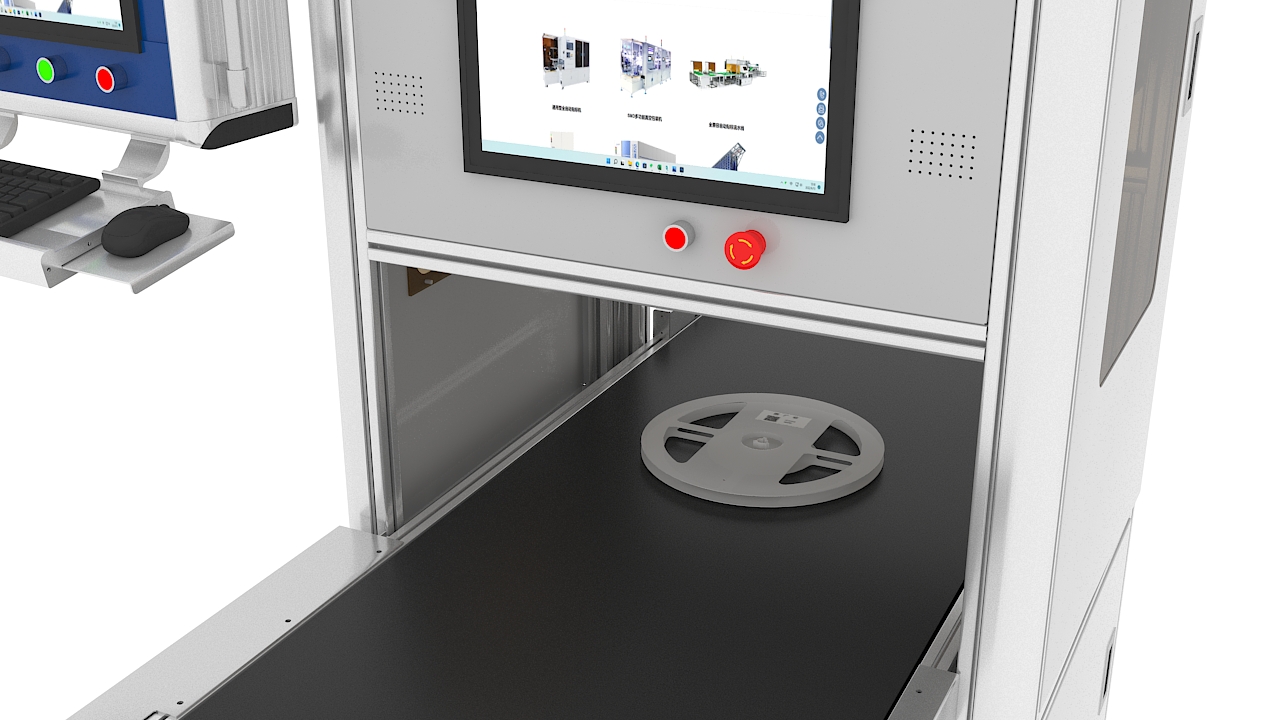

1、Manual material dischargePut the trays or bins into the loading station, and the belt conveyor line will convey them to the code reading station. -
2、Automatic code reading and reviewPrinter prints customer labels, operator does manual labelling; manually applies the label; -
3、Printing label, labelingPut the labeled material tray into the review station, automatic code reading, with a beep;
Functional features
l Suitable for 7" - 17" reels
l System can be interfaced with any WMS, ERP, MES etc.
l Easy to operate, only 1 person is needed
l Support voice announcement function to improve customer experience

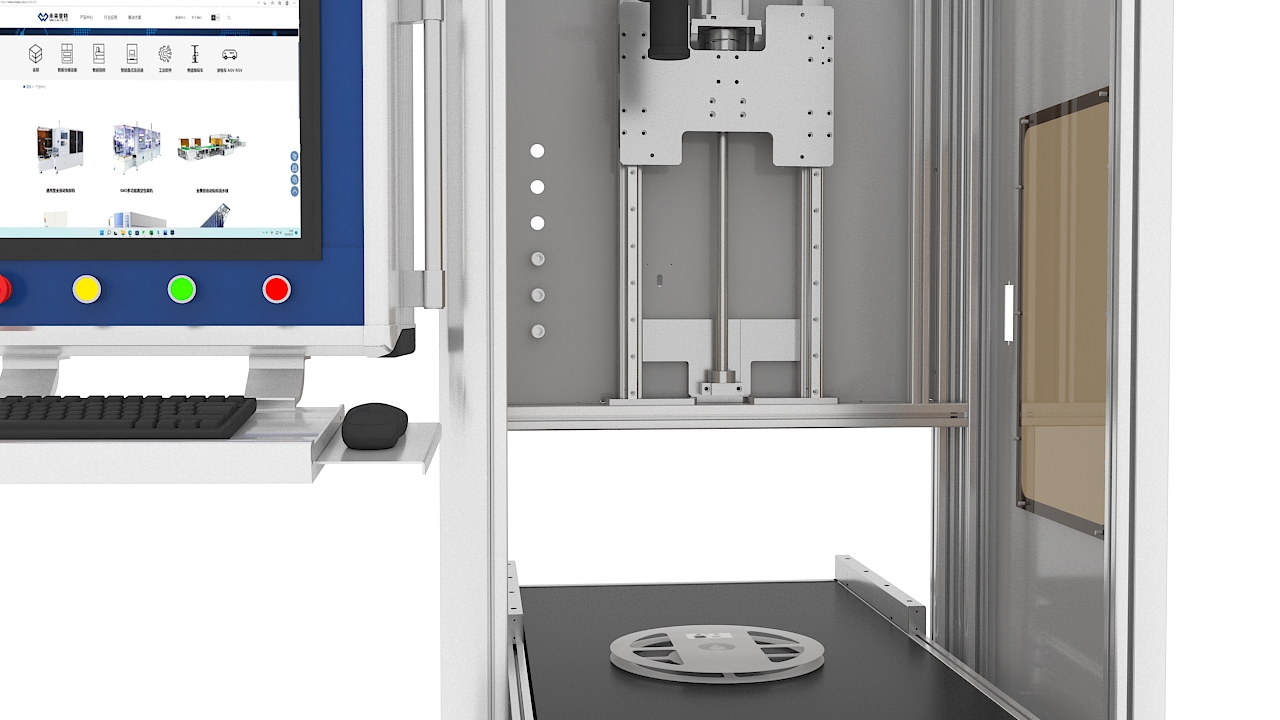

l Configured with a 2000w pixel industrial global camera, large field of view, can be moved for high speed reading
Machine vision uses infrared light source to hit the light (invisible light), relative to white light source, can avoid strong light to the operator eye stimulation, will not produce visual fatigue.
 |
 |
Scope of application

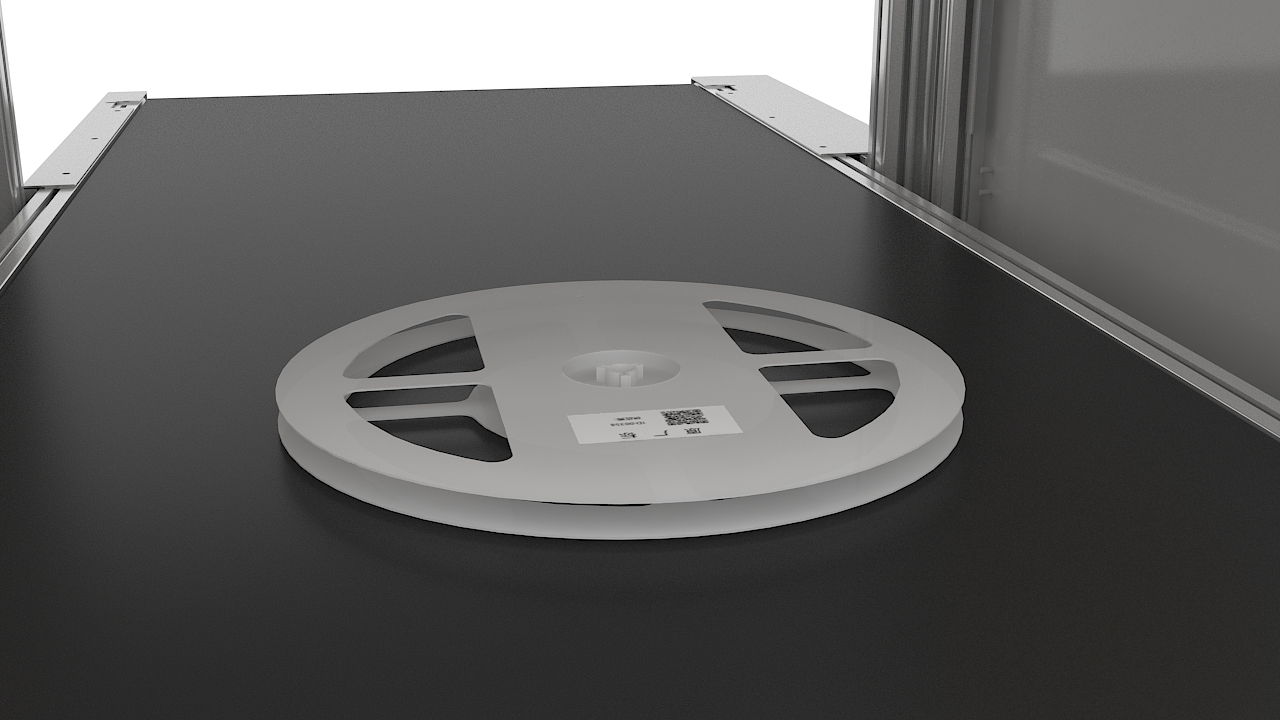

Suitable for automatic code reading and label data verification of electronic components (resistive components 7~17 inch SMD reels). Suitable for small batch shipments from distributors.
| Parameters | Hi-speed ticket checking machine |
|
Integration
System
|
system can be integrated with any WMS, ERP, MES, etc. |
|
Compatible
material
|
diameter: 7”-17”, height: 10-300mm (with laser focusing module, automatically adapts to material height) |
| Efficiency | 1s/pcs |
| Configuration | 1 set of 2000w pixel industrial global camera |
| Power Supply | AC220V (10A) (overseas customers can customize according to the actual power supply voltage) |
|
Dimensions
(L*W*H mm)
|
1800*800*1950 |
| Other | suitable for reviewing and checking material information. |
